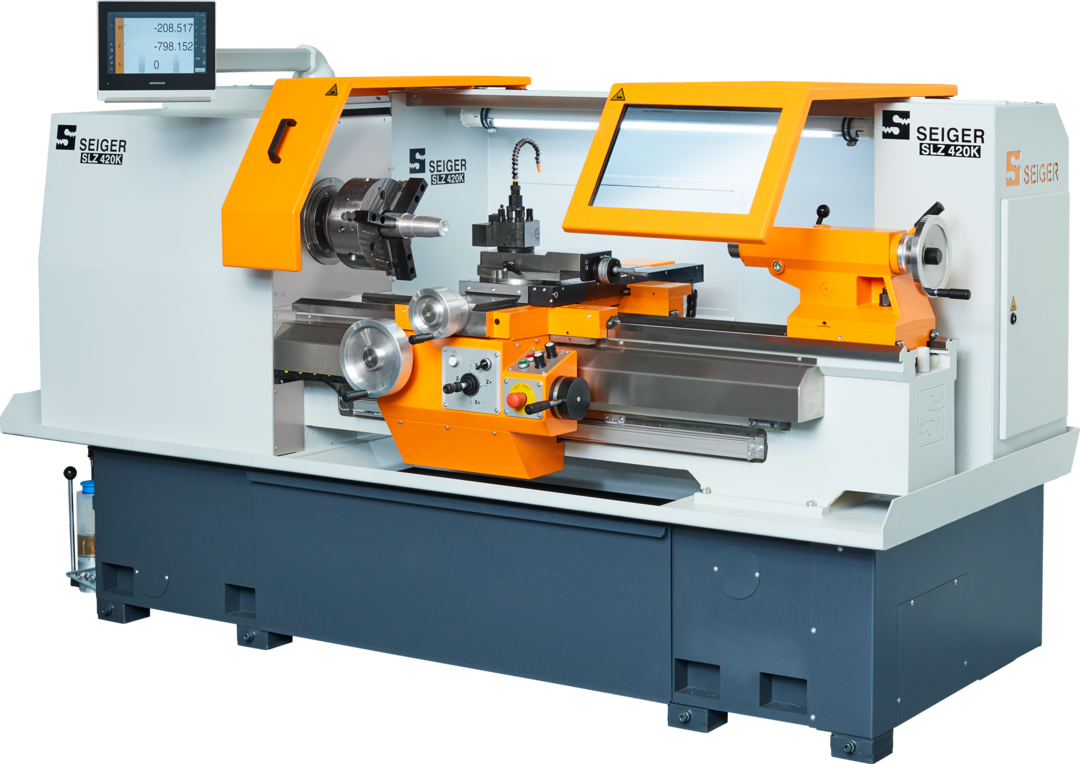

SLZ 420SK

The new dimension of the conventional lathe: Manual handling with a touch of digital support

The new dimension of the conventional lathe: Manual handling with a touch of digital support

Send inquiry Download data sheet

Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis. Bed width 350 mm
High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 80 mm as standard, Ø up to 130 mm as an option
Mechanical handwheels
Heidenhain 620 manual control
In accordance with DIN 8605 (toolmaker accuracy)
With the SEIGER SK series, you can map the entire contents of the training chain for qualification in machining professions for turning technology. A machine can be expanded depending on the year of apprenticeship.
1st expansion stage: setting stop, thread cutting

2nd expansion stage: manual cycles

3rd expansion stage: editing NC programs in DIN/ISO mode, execution of programs in program run mode

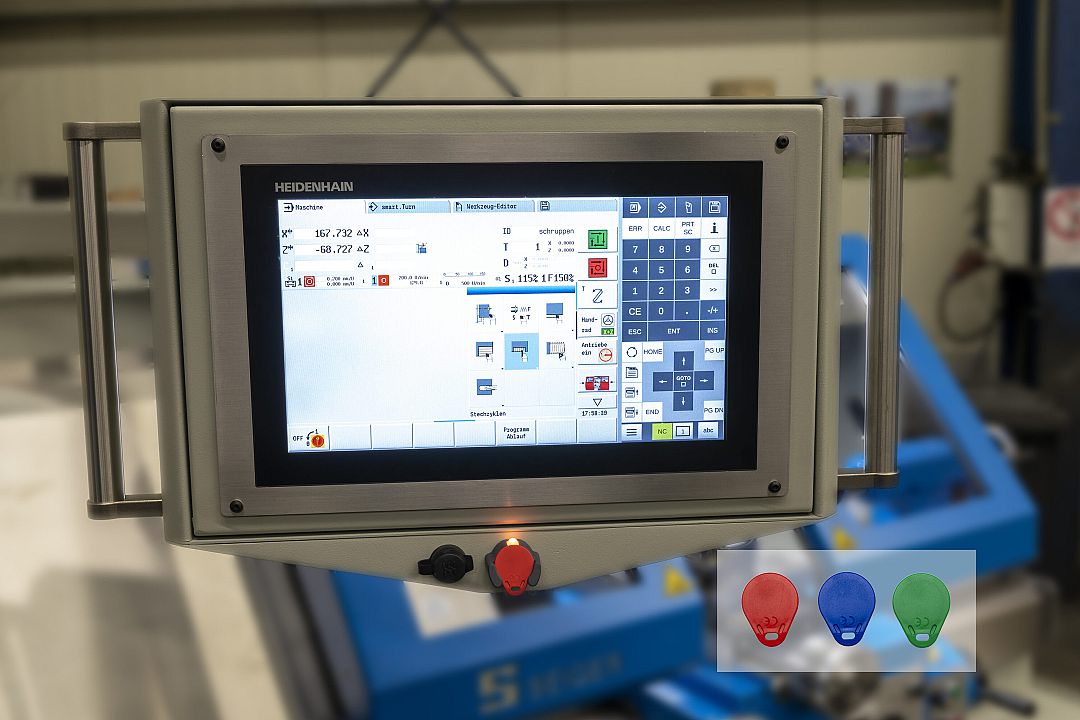

Heidenhain 620 manual control with 3 optional expansion stages. Robust industry-standard touchscreen

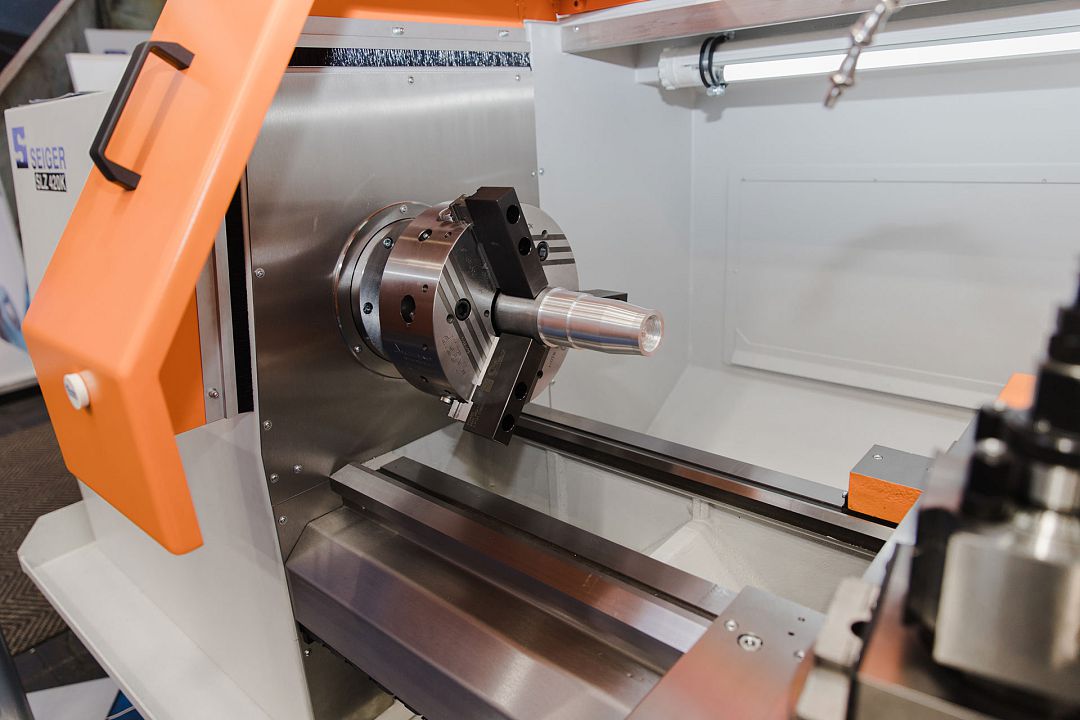

Stable headstock made of grey cast iron. 5 spindle bearings for a very smooth running. Large spindle bore 80mm.

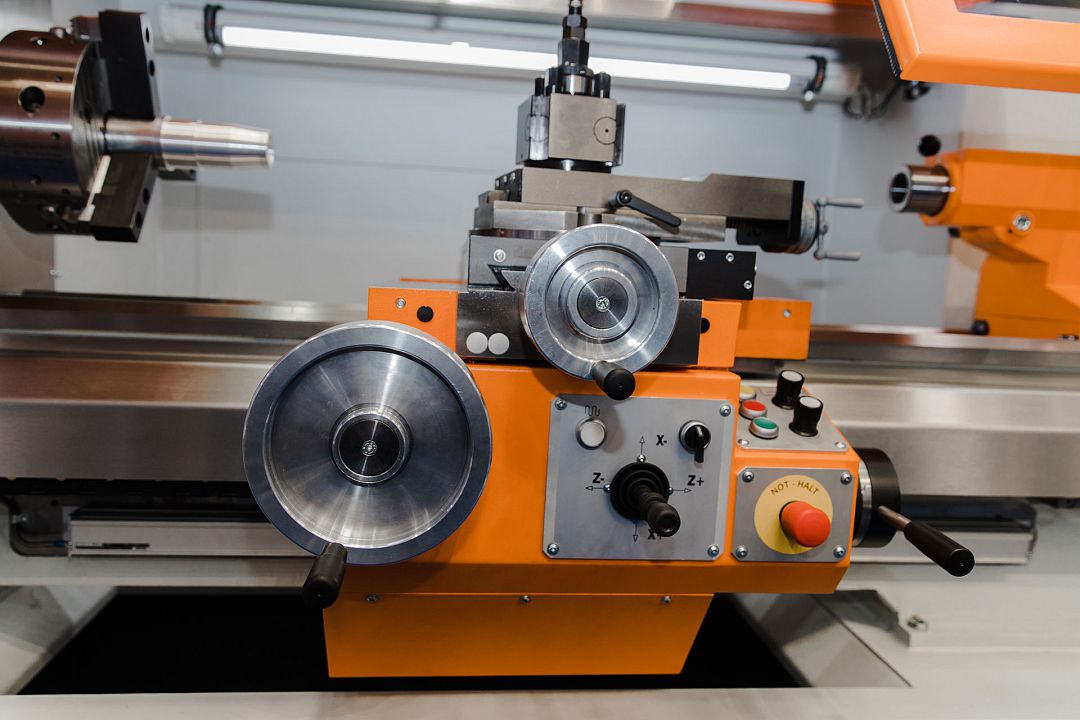

Support with mechanical handwheels for both axes

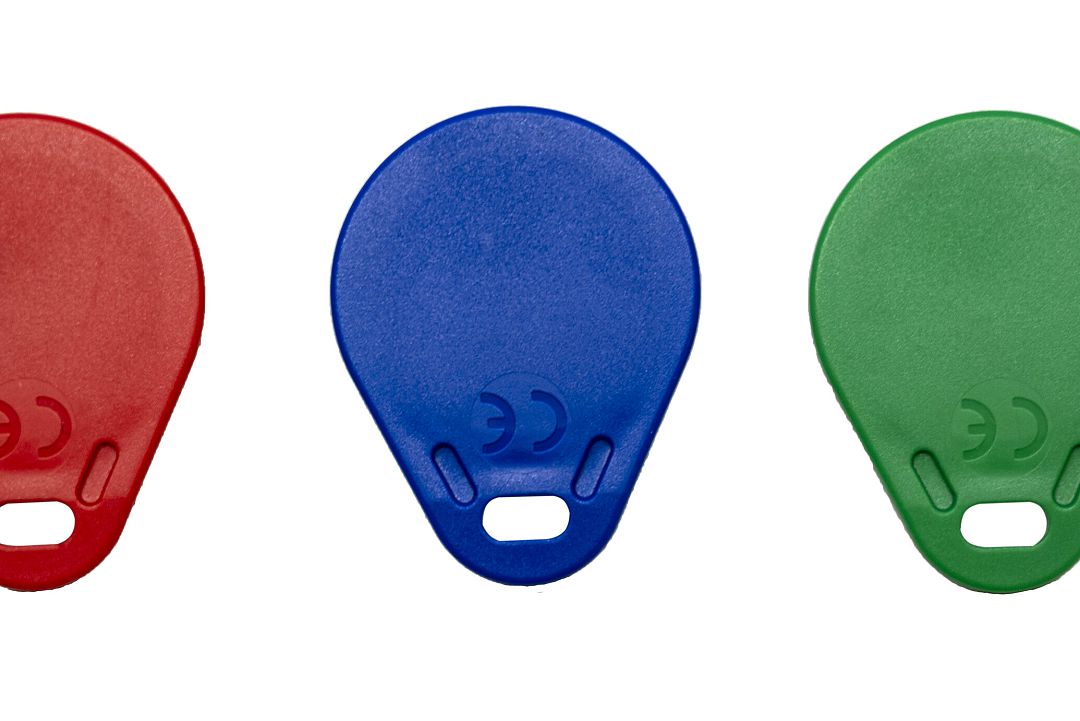

Simplest handling of the expansion stages. Activation takes place through magnetic color-coded chips directly at the control panel

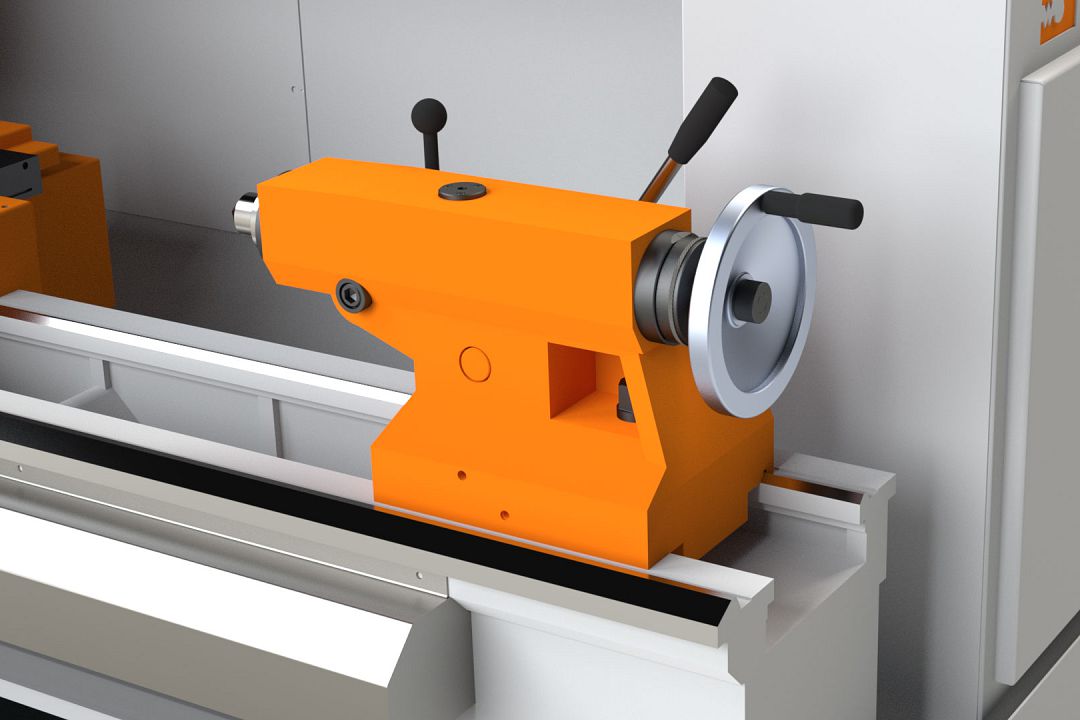

Tailstock quill d=70mm, large cantilever to the front for good accessibility

SLZ 420SK	Einheit	Wert
Swing over bed	mm	430
Swing over cross slide	mm	220
Bed width	mm	350
Spindle head in accordance with DIN 55027	Gr.	6
Spindle bore Ø	mm	80 / 93 (Option)
Spindle Ø in the front bearing	mm	110 / 130 (Option)
Tailstock quill Ø	mm	70
Tailstock stroke	mm	150
Tailstock Morse taper	MK	5
Center distance	mm	1.000 / 1.500 / 2.000
