SLZ 2000

SEIGER cycle lathe: The 4-way lathes from Seiger. Cycle-controlled lathes for large turned parts with state-of-the-art machine bed technology

General information


  • Available with CNC or cycle control from Siemens or Heidenhain
  • Torsion-resistant 4-way box-type bed, in Hydropol version, steel-sheathed with hardened, precision-ground slideways and glass scale
  • Bed width 1,350 mm with rack and pinion drive on the Z-axis
  • Direct position measuring system in the Z-axis and X-axis incl. sealing air system
  • Electric tailstock drive with quill diameter 320 mm
  • Main drive with 70 kW and 2-speed gearbox, automatically switchable
  • Headstock with 3 bearing points, bearing inner diameter 300 mm
  • Different paneling variants can be manufactured, as partial or full paneling
  • 4-slideway bed and support guide at the front for the support
  • Flat slideways made of hardened and ground steel screwed on

Overview of features


Slideway protection by means of walkable telescopic covers in both axes
Slideway protection by means of walkable telescopic covers in both axes
Latest material technology thanks to Hydropol bed with hardened steel guides. Bed width 1,350 mm
Latest material technology thanks to Hydropol bed with hardened steel guides. Bed width 1,350 mm
Cost-efficient shaft manufacturing by moving past rests and tailstock
Cost-efficient shaft manufacturing by moving past rests and tailstock

Photos

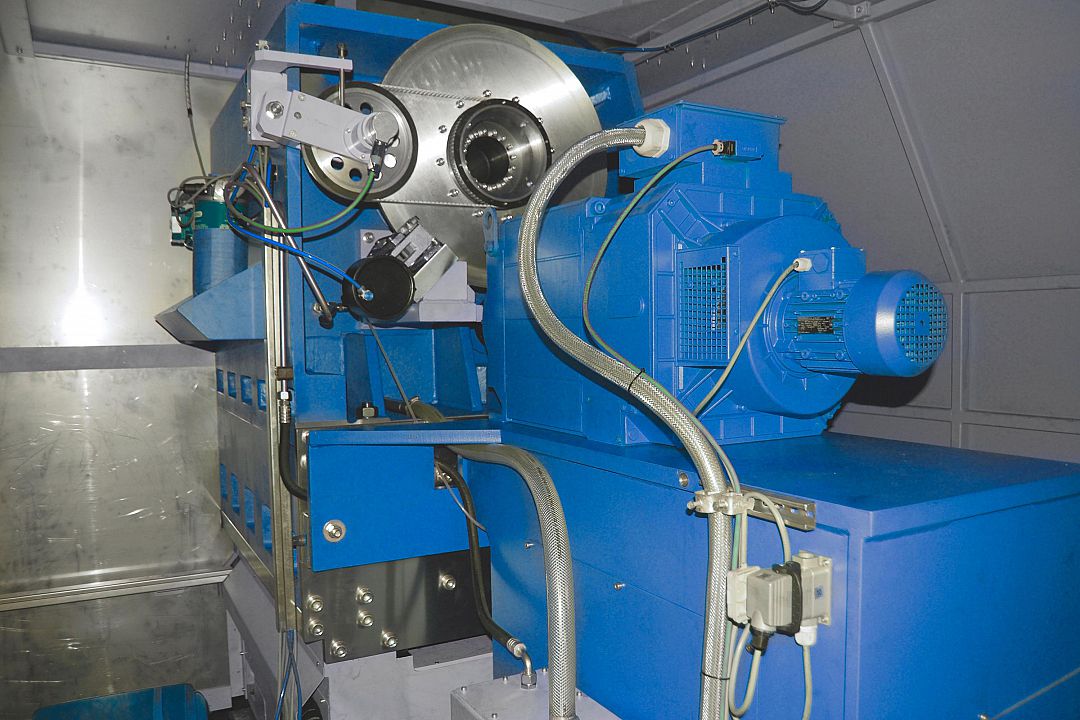

Main drive with 70 kW and 2-speed gearbox, automatically switchable.

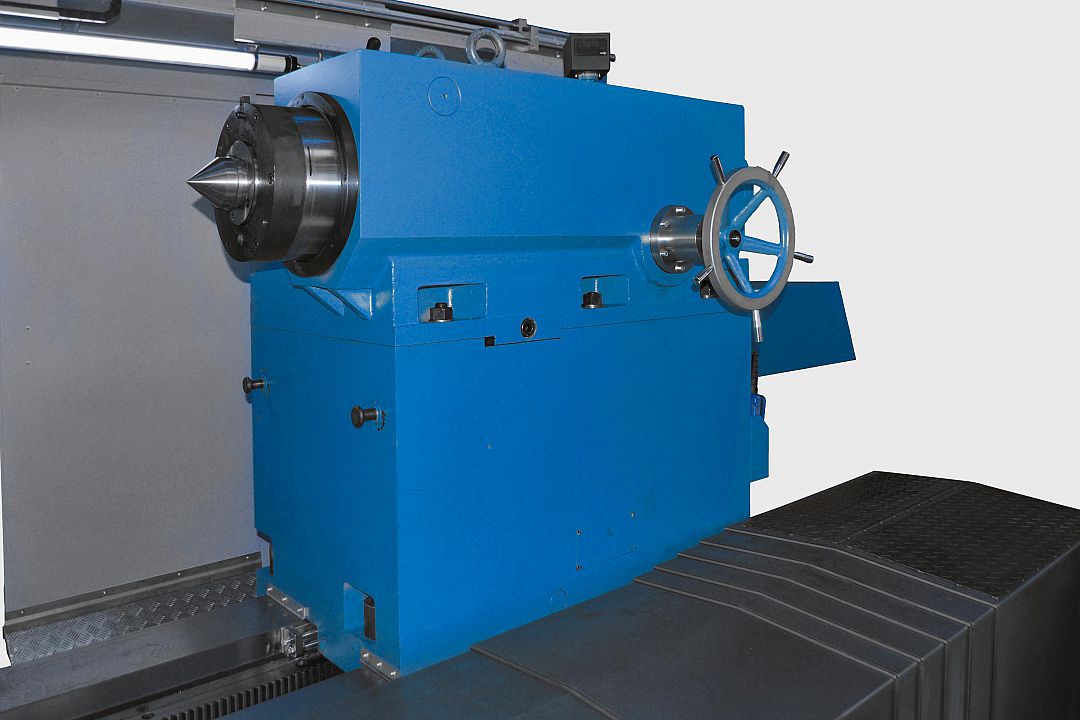

Solid tailstock as a cast iron part with quill Ø = 320 mm, can be moved electrically on the machine bed.

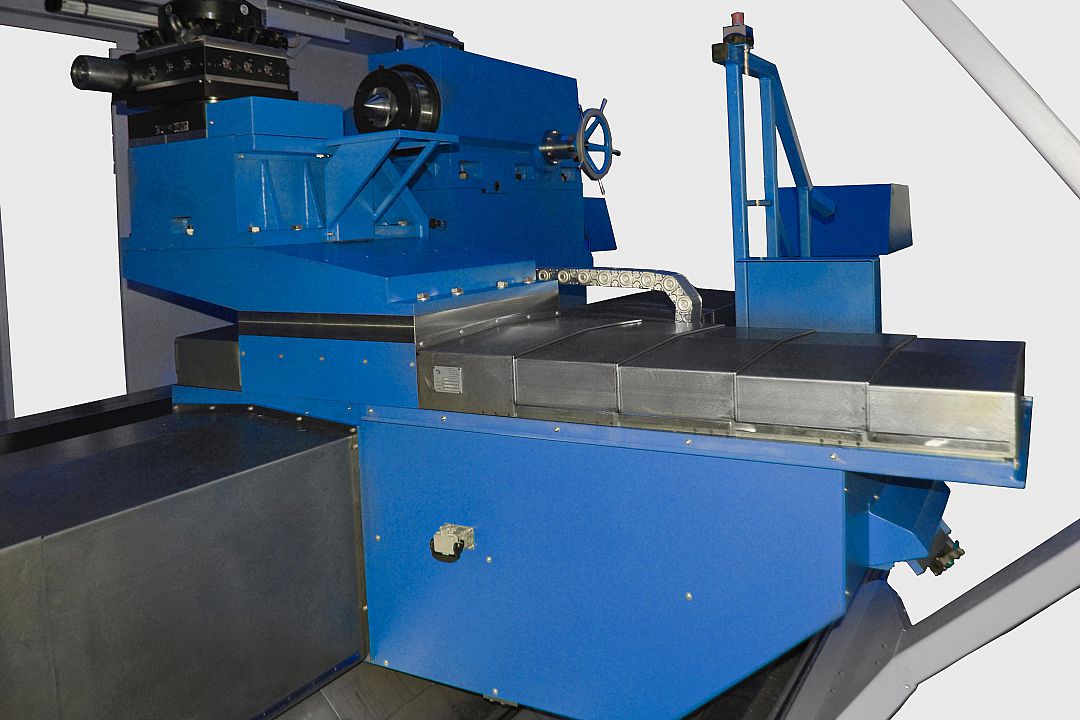

Hardened cross slide guide, telescopic cover at the front and rear.
Z-axis drive through a dual-drive gearbox incl. direct position measurement on the Z-axis.
Bed slide assembly made of high-grade cast iron. Counterstay to the Z-axis occupied with Turcite guide and bedded in.
Hydropol bed with screwed on, hardened steel guide rails for a long service life.

Main drive with 70 kW and 2-speed gearbox, automatically switchable.

Solid tailstock as a cast iron part with quill Ø = 320 mm, can be moved electrically on the machine bed.

Hardened cross slide guide, telescopic cover at the front and rear.

Z-axis drive through a dual-drive gearbox incl. direct position measurement on the Z-axis.

Bed slide assembly made of high-grade cast iron. Counterstay to the Z-axis occupied with Turcite guide and bedded in.

Hydropol bed with screwed on, hardened steel guide rails for a long service life.

Specifications and performance

Specifications


SLZ 2000E Unit Value
Swing over bed mm 2.000
Swing over cross slideführung mm 1.400
Bed width mm 1.350
Spindelkopf nach DIN 55026 Size 20
Spindle bore Ø mm 120
Spindle Ø in the front bearing mm 300
Tailstock quill Ø mm 320
Tailstock stroke mm 250
Tailstock Morse taper   Fixed tip
Center distance mm 3.000 – 20.000

Performance


SLZ 2000E Unit Value
Main drive KW 70
Speed range 1/min 1 – 710

Dimensions
Length mm 5.900 + Center distance
Width mm 4.530
Height mm 3.170
