SLZ 420E

SEIGER cycle lathe: The universal model for many applications, with powerful performance and top accessibility

Find out more

SEIGER SLZ 420E Drehmaschine

SLZ 420E

SEIGER cycle lathe: The universal model for many applications, with powerful performance and top accessibility

back

Information

Send inquiry Download data sheet

General information

  • Available with CNC or cycle control from Siemens or Heidenhain
  • Safety clutch in the Z-axis and X-axis
  • Torsion-resistant bed made of high-quality cast iron with hardened precisely ground slideways and glass scale on the X-axis. Bed width 350 mm
  • The control panel can be moved and pivoted freely
  • High degree of precision and rigidity of spindles thanks to precise spindle bearing, spindle bore Ø 80 mm as standard, Ø up to 130 mm as an option

Overview of features

Optional with gearbox or 20 kW main drive
Optional with gearbox or 20 kW main drive
350 mm bed width
350 mm bed width
Spindle bore 80 mm as standard, 93 mm as an option
Spindle bore 80 mm as standard, 93 mm as an option

Photos

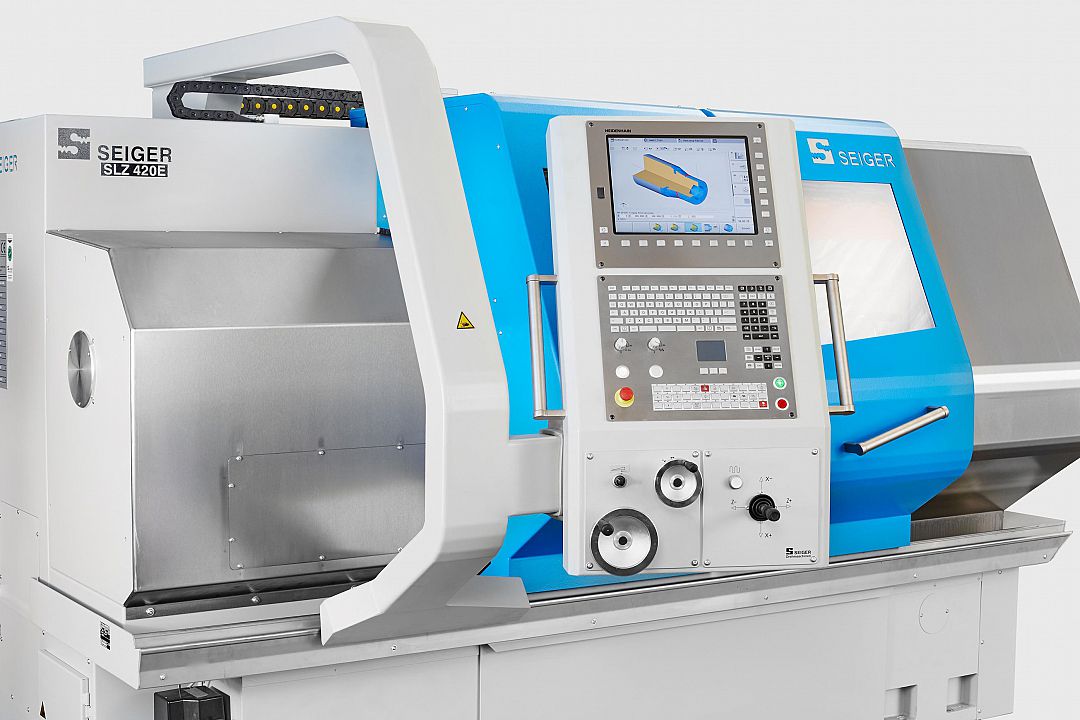

New control panel with revised layout of the controls for even more operator convenience, optionally available with 15 inch screen from Heidenhain in stainless steel version.
Special version: C-axis can be pivoted in by cylinder, toothed gar drive and separate motor with gearbox, high-resolution rotary encoder.
Different manual rests, or hydraulic rests as an option.
Example combination: Milling unit can be removed at zero-point clamping. Parat 4-fold turret in front of the turning center.
Slideway protection as telescopic cover for the support slideways as an option
Zero-point clamping at the front for boring bar clamping support. Disk turret behind the turning center.

New control panel with revised layout of the controls for even more operator convenience, optionally available with 15 inch screen from Heidenhain in stainless steel version.

Special version: C-axis can be pivoted in by cylinder, toothed gar drive and separate motor with gearbox, high-resolution rotary encoder.

Different manual rests, or hydraulic rests as an option.

Example combination: Milling unit can be removed at zero-point clamping. Parat 4-fold turret in front of the turning center.

Slideway protection as telescopic cover for the support slideways as an option

Zero-point clamping at the front for boring bar clamping support. Disk turret behind the turning center.

Specifications and performance

Specifications

SLZ 420E Unit Value
Swing over bed mm 430
Swing over cross slide mm 220
Bed width mm 350
Spindle head in accordance with DIN 55027 Size 6
Spindle bore Ø mm 80 / 93 (Option)
Spindle Ø in the front bearing mm 110 / 130 (Option)
Tailstock quill Ø mm 70
Tailstock stroke mm 150
Tailstock Morse taper MK 5
Center distance mm 1.000 / 1.500 / 2.000

Performance

SLZ 420E Unit Value
Main drive KW 11 / 20 (Option)
Speed range 1 / min 1 – 3.600

Maße
Length mm 1.990 + Center distance
Width mm 2.200
Height mm 1.970
